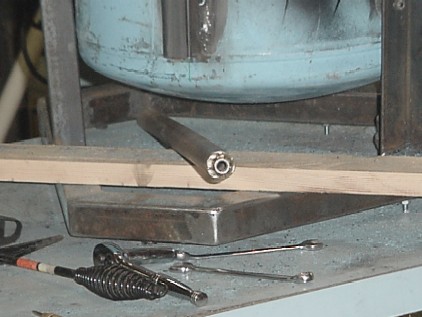

  • This picture shows the lift tube end with the 3/8-16 nut brazed into place. The lift tube is hollow down the center. Into this threads a carriage bolt that will ride on the lift cam and allow for fine adjustment.

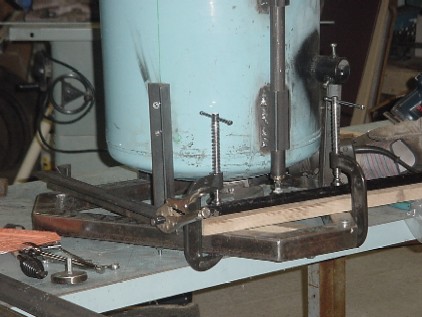

  • Here is the list tube mechanism starting to be mocked up. On the left is the lift pedal arm assembly. The cam is on the front-left corner of the table. The cam will be mounted off-center on the rod such that when the pedal is pushed down the cam-action will lift the lift tube, raising the lid.



This documents the progress as of 5-JAN-2004. Continue on with Part 2 of the Foundry build.
