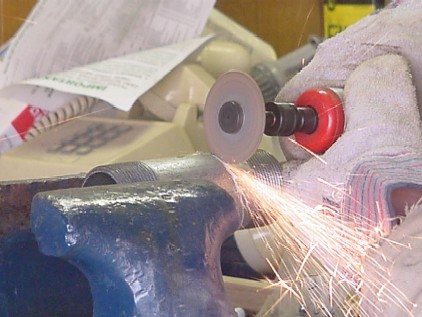

  • Again I am using the pneumatic cutting wheel. This time I am cutting the pipe nipple that will hold the burner tube in the side of the furnace. The cut is a 8" radius pipe notch.

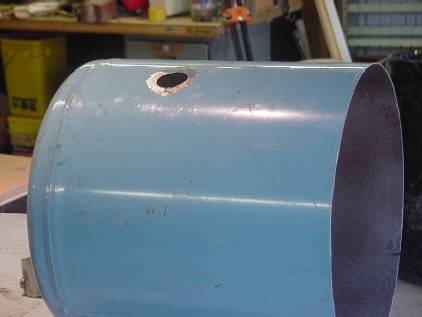

  • Here is the tank with the corresponding hole for the tube. It is cut on an angle that is tangential to what will be the 8" inside diameter of the furnace.

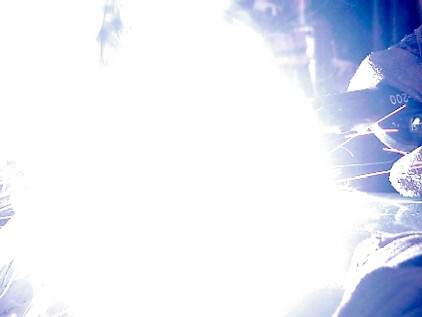

  • Here is a picture that otherwise shows very little. I am just surprised that I got anything at all. In this picture I am welding the burner tube in place.
