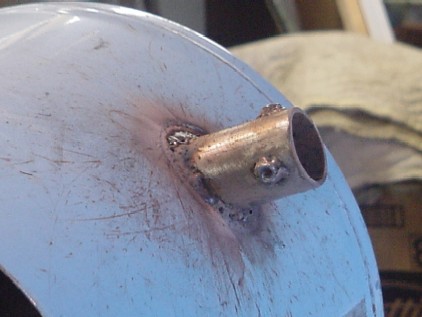

  • Here is the burner tube welded into place before being cleaned up. Notice two of the three nuts welded in 120 angular increments for the 1/4-20 bolts that will center and hold the actual burner.

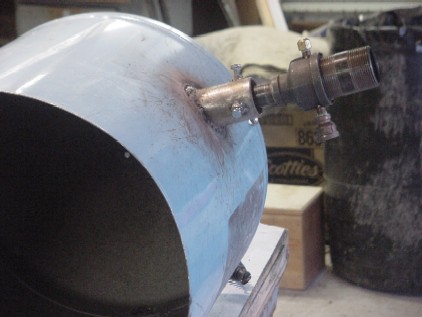

  • Test fitting the burner in the tube.
