  • Here is the bottom filled with refractory up to the point where the bottom part of the form needs to be inserted. This turned out to be mistake number 1. I didn't coat the rod with anything and some of the refractory got on the upper portion that slides into the bottom form to keep it centered on the drain hole. This "glued" the whole thing together as I'll explain in a moment.

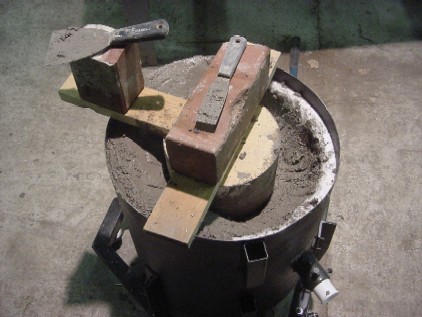

  • Almost done. It took over two hours to mix and pour the refractory cement in the main body. Almost three full bags also.
