Foundry Part 2


<Prev> 1 2 3 4 5 6 7 8 9 <Next>

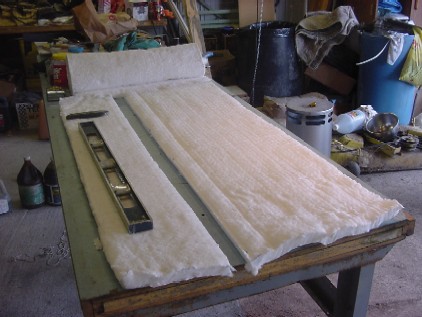

  •  A picture of the Kaowool insulation on the bench being cut to size.

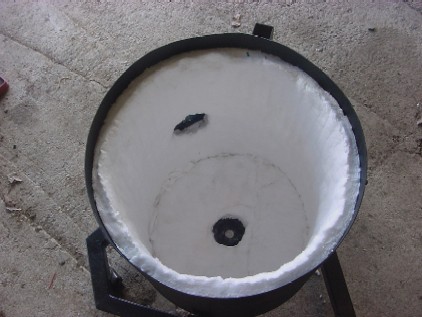

  • Here is the furnace body lined with the Kaowool. I kept the insulation down from the top about 1" and enlarged the areas around the drain hole and burner tubes so that the refractory comes all the way to the metal wall in these areas.

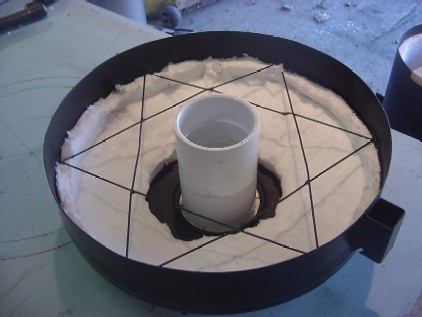

  • The lid lined and ready to go. That is two 3" PVC couplings glued end to end. The outside diameter of the couplings is about 4 inches. I used tape to close up the slight gap between the PVC form and the hole in the lid (about 1/8" all around).
